3.1. UAV assembling

3.1.1. Open the folding tripod, make sure that the buckle is locked, and then install the two carbon tubes to the body according to the hole position of the body.

3.1.2. Attach the left and right wings to the fuselage. (Make sure the spring buckle is locked when installing)

3.1.3. Install the arm to the wing (when installing, align the socket first, and then snap the buckle)

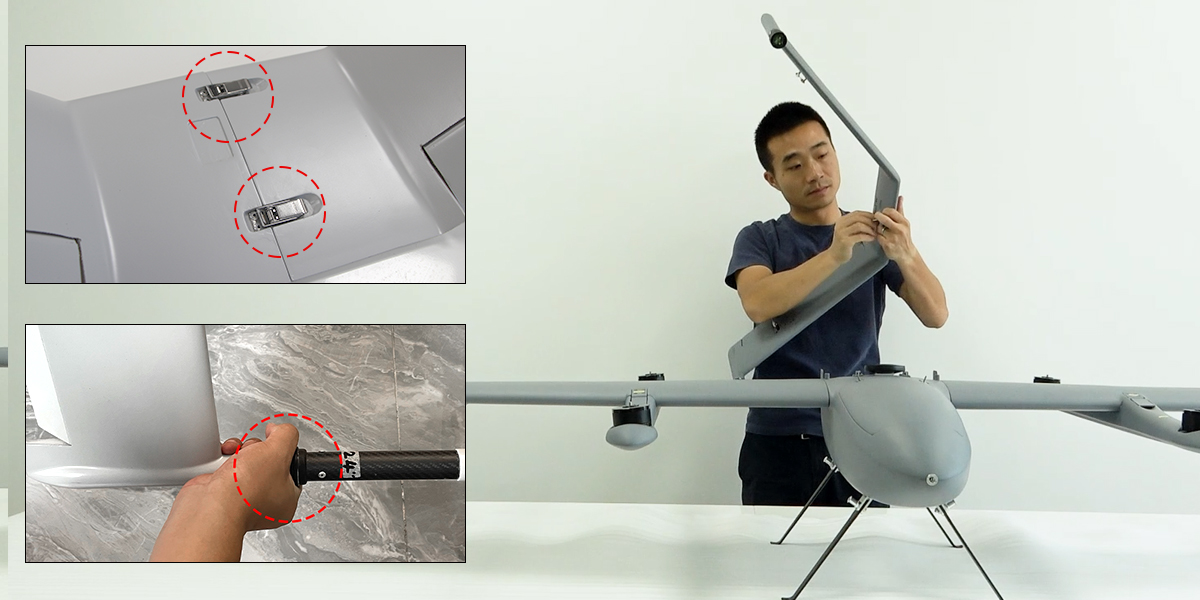

3.1.4. Assemble the tail and install it on the drone.

3.1.5. Install the airspeed tube and antenna.
