# 2. Install

2.1. Landing gear installation, install the left and right brace, move absorb sleeve (02) as shown in (01) and screw down the opening (03).

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FcMvD90IQgK0uPQXRRLQ3%2Fimage.png?alt=media&#x26;token=c46ec0fd-ce3e-4150-8352-f9d3a286c3f2" alt=""><figcaption></figcaption></figure>

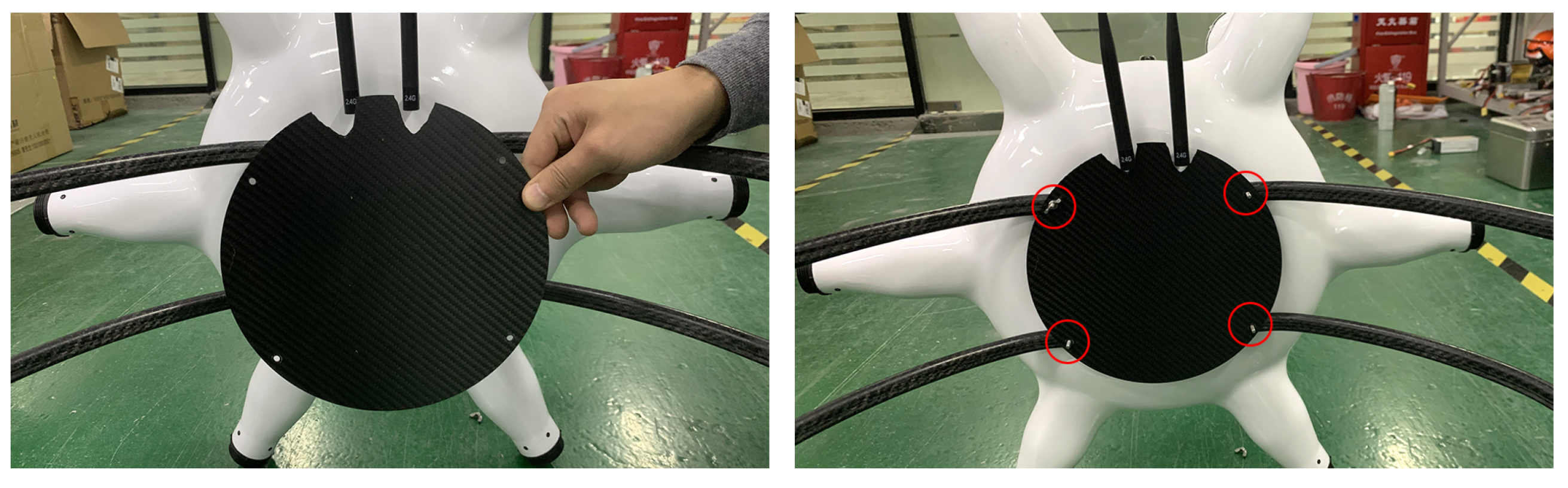

2.2. Align the assembled bracket with the corresponding hole on the fuselage.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2F8FKLsiSWFZ779RZLc1IY%2Fimage.png?alt=media&#x26;token=b28c3608-c418-49e0-b9fa-785646329353" alt=""><figcaption></figcaption></figure>

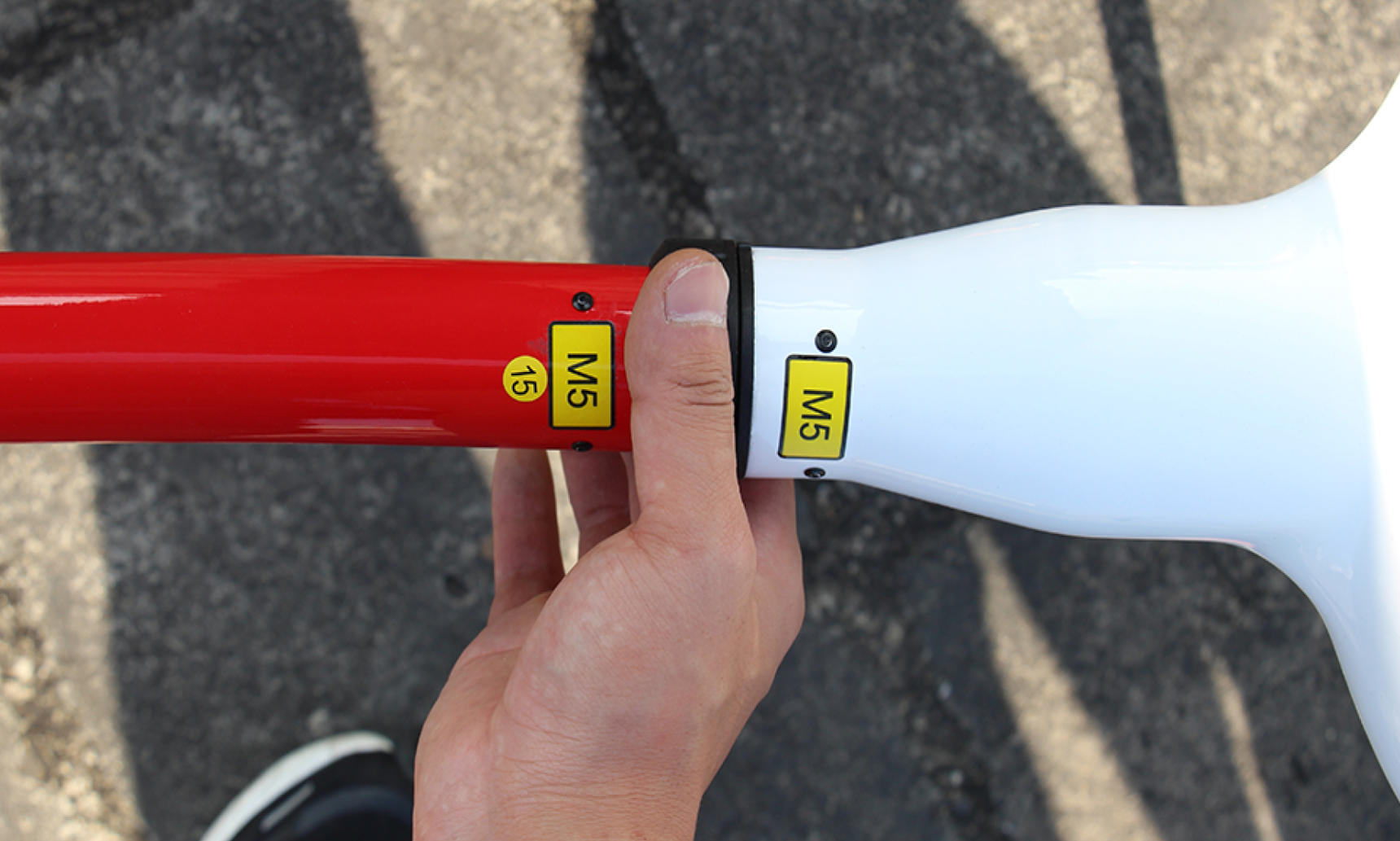

2.3. Install the 6 arms in accordance with the indicated number , as shown in the figure below. "There is a mark on each arm and install it in according to the mark corresponding.After installation, please check whether it is firm."

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FryDnvkCp68AbX2FjmQCA%2Fimage.png?alt=media&#x26;token=2ab23afc-0aea-419d-9d0d-31d7dd6a0ba2" alt=""><figcaption></figcaption></figure>

2.4. Install the propeller.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FoUc3nykDmE1Rh97A4va0%2Fimage.png?alt=media&#x26;token=53cc1ed8-7402-4e27-bd3c-8dc01e96fbe9" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2F9yGQmUYSgmgqDUS3N8V2%2Fimage.png?alt=media&#x26;token=bf85b4b9-6d9b-49ca-8b79-f89eeac1e5eb" alt=""><figcaption></figcaption></figure>

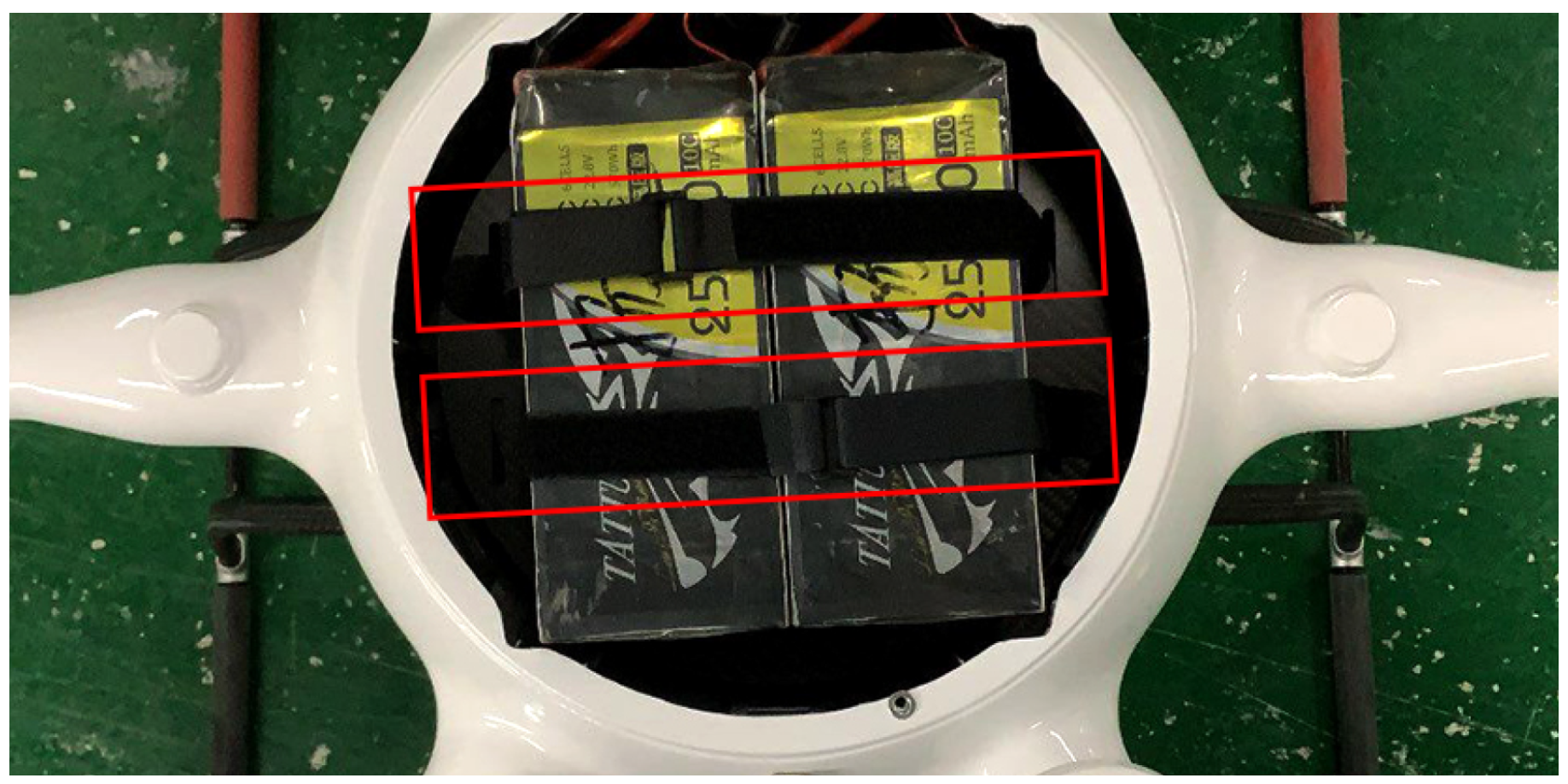

2.5. Fix the batteries (2\*25000mAh batteries) in the fuselage,and power on according to the cable label,Close the cover and fasten the button.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FLZHarKud1nnrSlIT8Pvt%2Fimage.png?alt=media&#x26;token=e8dc26cd-8e53-41a6-8726-55873567d58d" alt=""><figcaption></figcaption></figure>
