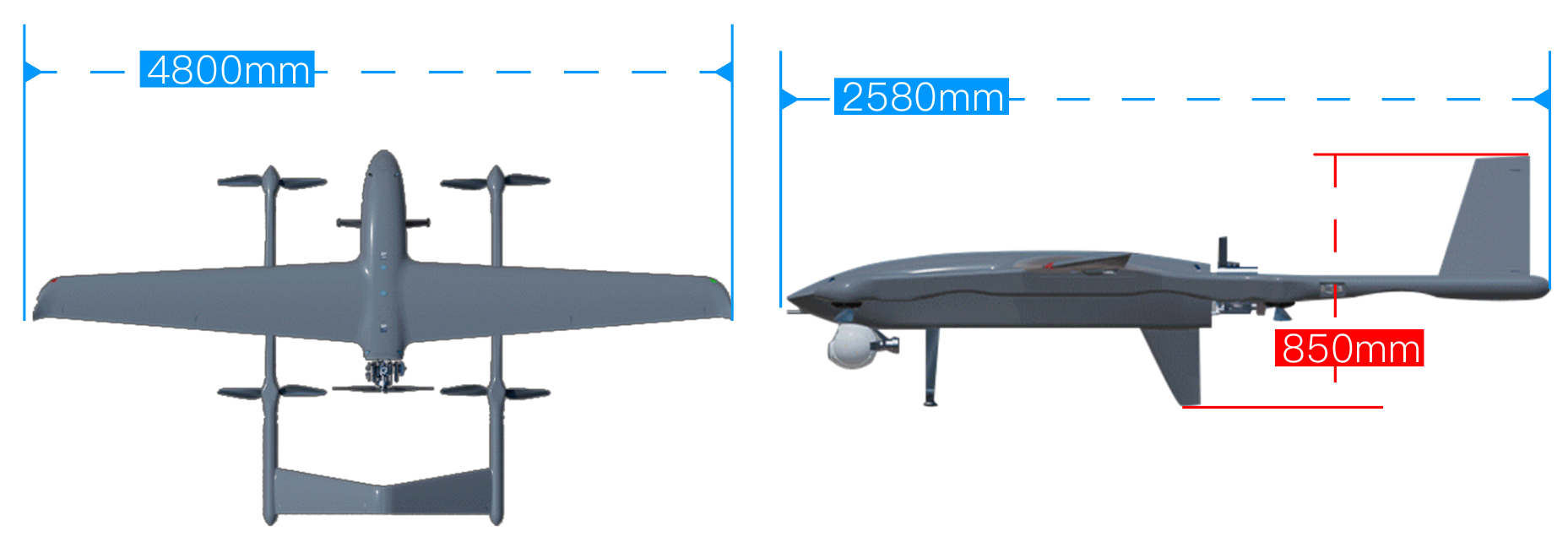

  • 2.2. Size

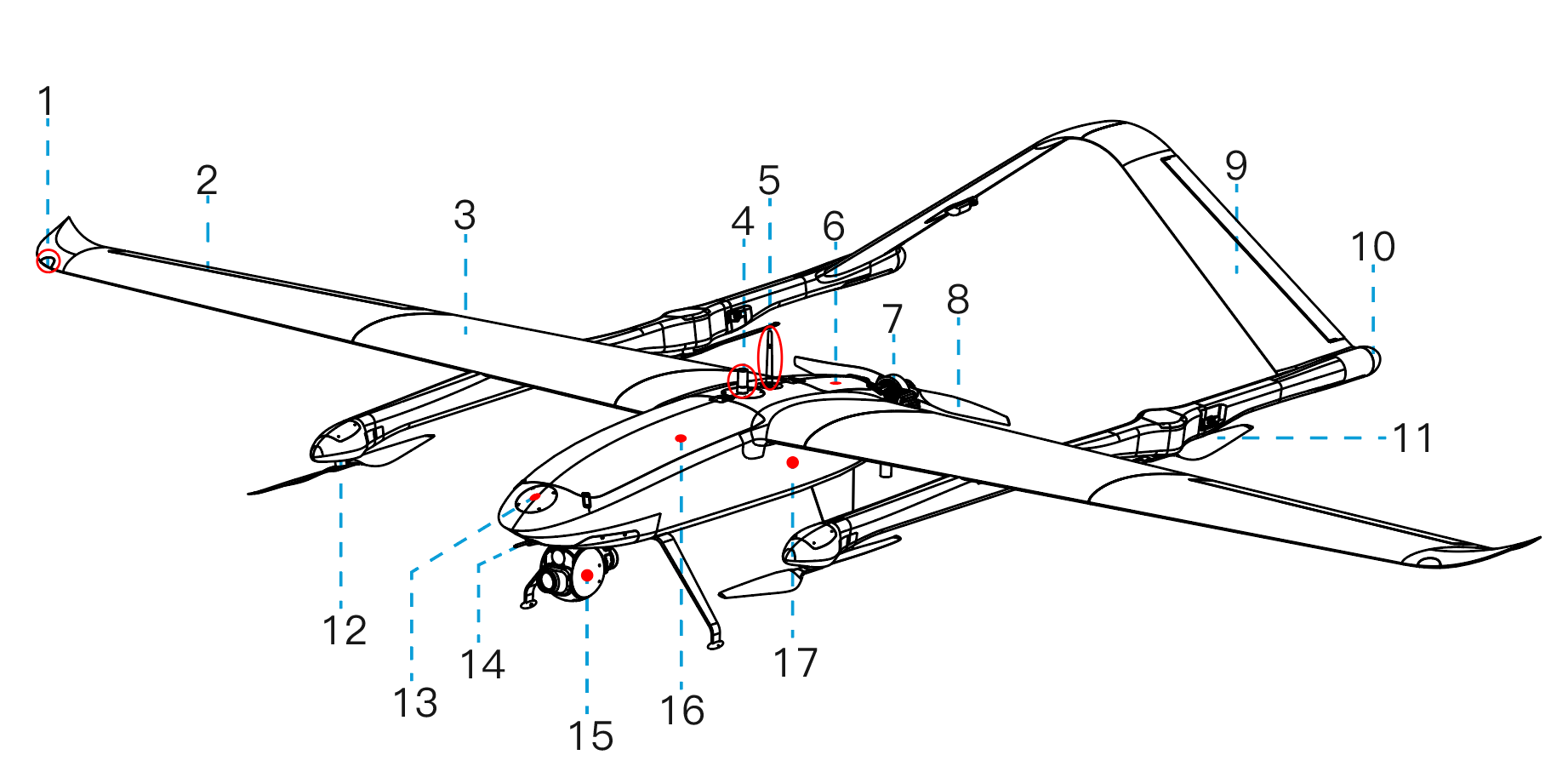

  • 2.3. Body structure
  1. VTOL Drone User Manual
  2. Sky Whale Max Hybrid VTOL

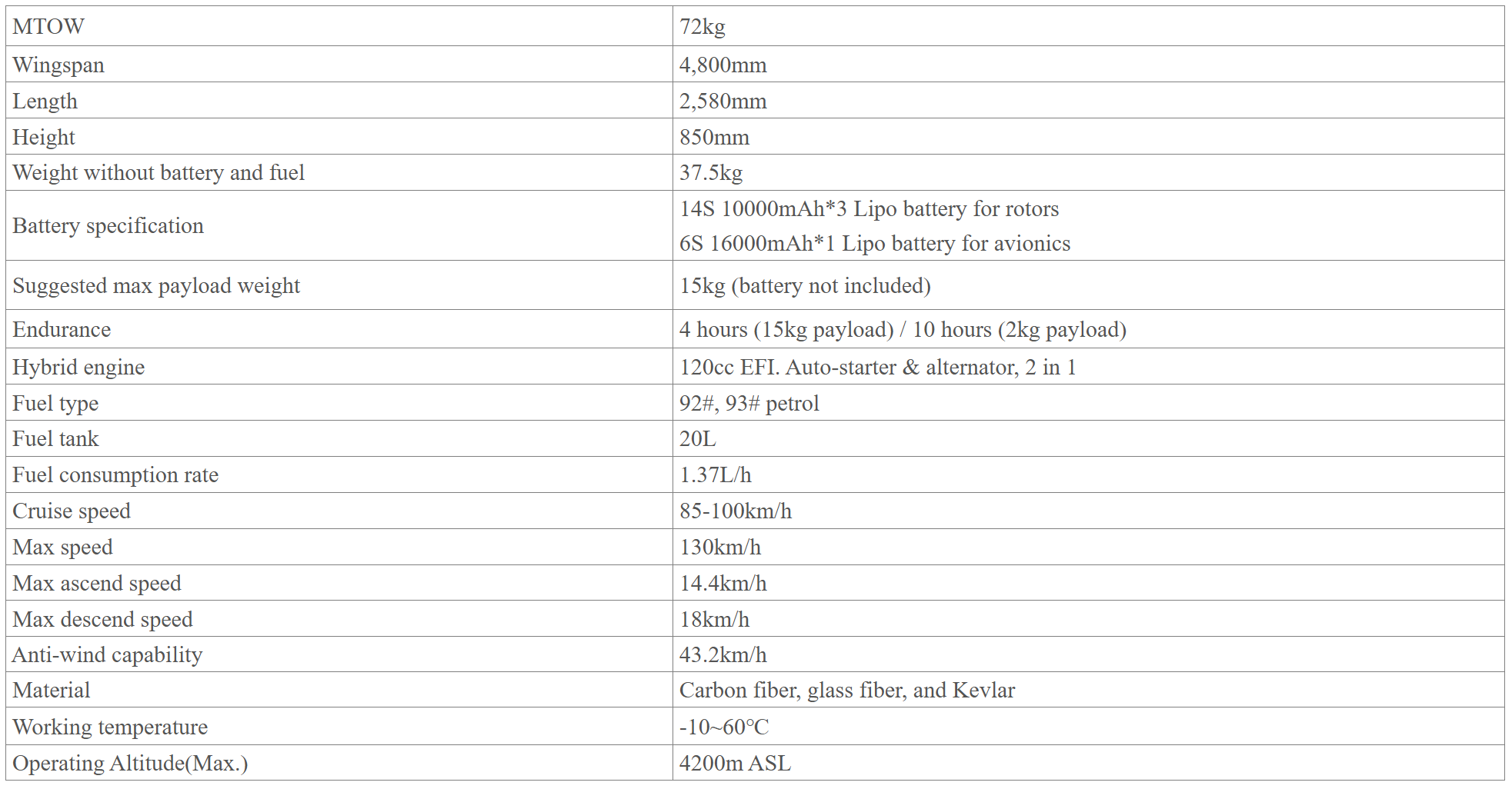

2. Specification

2.1. Specification

MTOW

65kg

Wingspan

4800mm

Length

2580mm

Height

850mm

Weight without battery and fuel

37.5kg

Standard battery pack

3 x 14S 10000mAh HV Lipo battery

1 x 6S 16000mAh HV Lipo battery

Suggested max payload weight

15kg (battery not included)

Endurance

4 hours (15kg payload) / 10 hours (2kg payload)

Hybrid engine

DLA116 116cc EFI. Auto-starter & alternator, 2 in 1

Fuel type

92#, 93# petrol

Fuel tank

18L

Fuel consumption rate

1.37L/h

Cruise speed

85-100km/h

Max speed

130km/h

Max ascend speed

14.4km/h

Max descend speed

18km/h

Anti-wind capability

43.2km/h

Material

Carbon fiber, glass fiber, and Kevlar

Working temperature

-10~60℃

Operating Altitude(Max.)

4200m ASL

2.2. Size

2.3. Body structure

1.Wing lights

10.Tail lights

2.Winglet

11.Rotor blades

3.Middle wing

12.Rotor motor

4.RTK antenna

13.Front RTK antenna

5.Image digital transmission antenna

14.Pitot tube

6.Engine avionics compartment

15.PTZ camera

7.Tail thruster engine

16.Avionics battery and power battery compartment

8.Tail thruster blade

17.The position of the fuel tank inside the engine room

9.Empennage

Previous1. Disclaimer and safety warningNext3. Flight mission procedure

Last updated 5 days ago
