On this page
  • 3.1. Device discovery
  • 3.2. Network setup
  • 3.3. OSD settings
  • 3.4. Joystick configure
  • 3.5. Remote control
  • 3.6. General
  • 3.7. Terminal tool
  • 3.8. Firmware update
  • 3.9. Data Link
  • 3.10. External port
  1. Gimbal Camera User Manual
  2. YDlink Control software

3. Settings window

Previous2. Control and configurationNext4. Card file

Last updated 1 month ago

With YDlink, you can do settings such as camera parameter configurations, firmwae update, OSD, Joystick and so on.

3.1. Device discovery

Discover the device online

3.2. Network setup

Display camera's current IP input and output frame rate and resolutions,device software version from this sector.

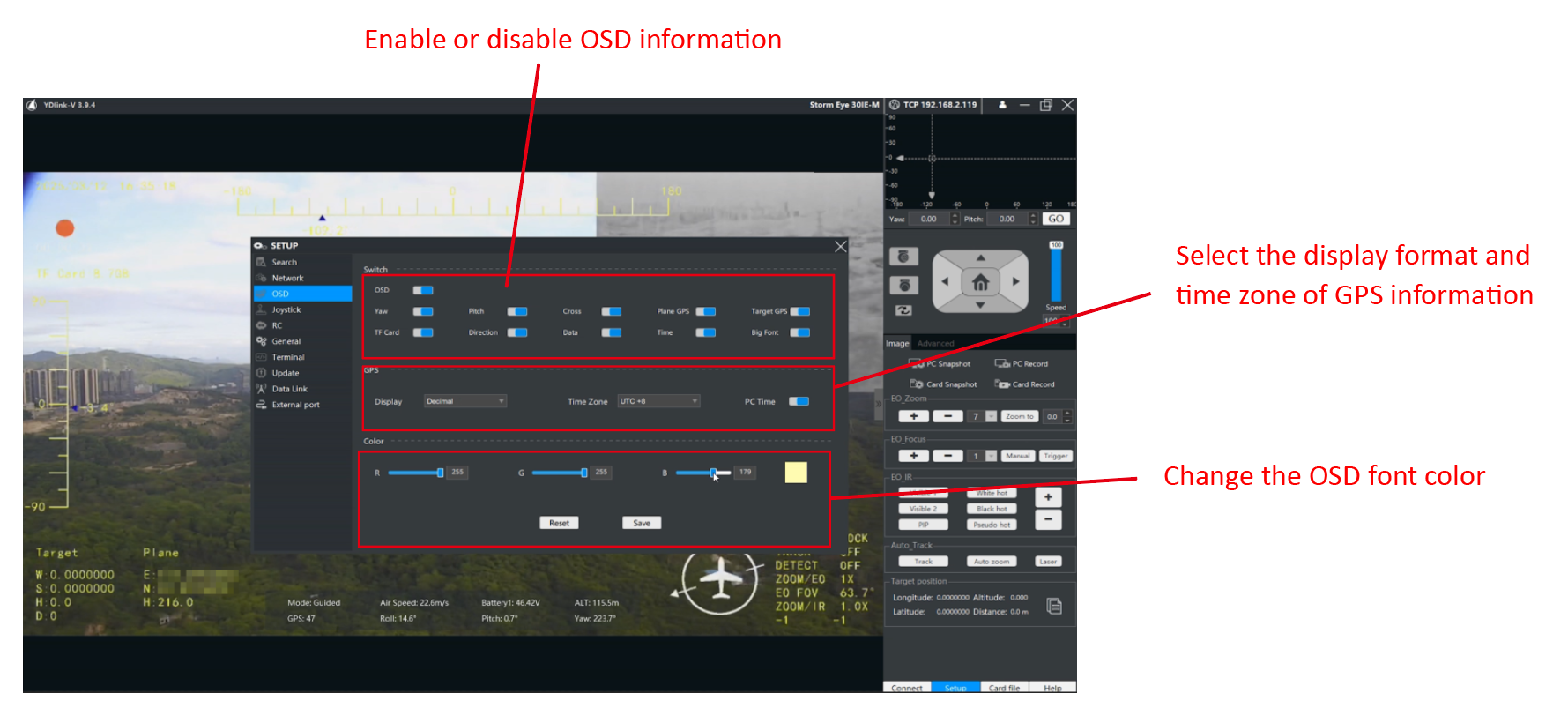

3.3. OSD settings

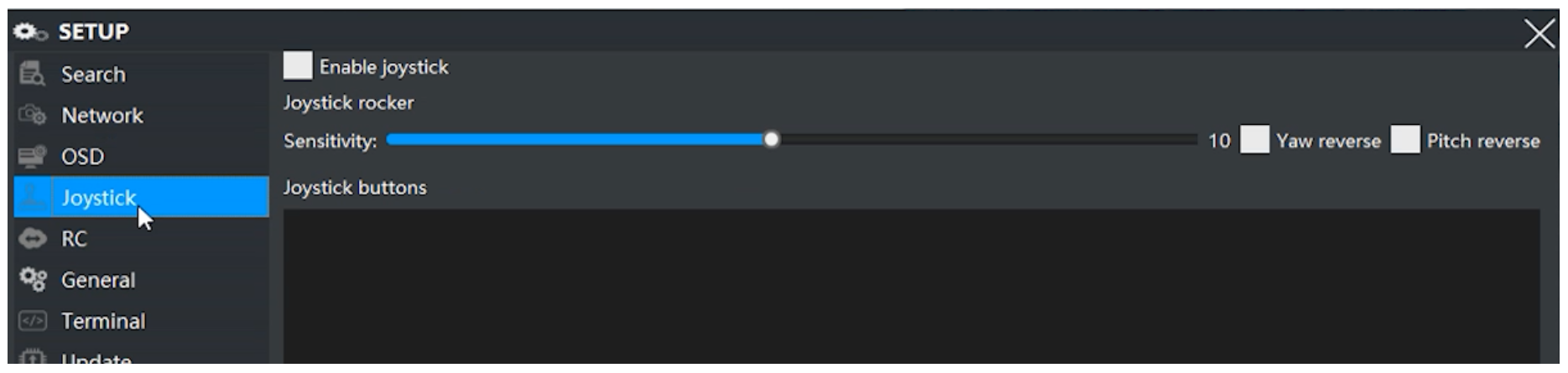

3.4. Joystick configure

Connect the Joystick to PC, then configure the channels.

3.5. Remote control

Connect the RC controller to gimbal, then configure the channels.

3.6. General

Set the local save path for snapshots and video recordings.

3.7. Terminal tool

YDlink can be used as a serial command setting tool. For some functions that YDlink GUI does not provided, you can send commands to the gimbal and camera directly.

3.8. Firmware update

click "Open" and then start to upgrade.

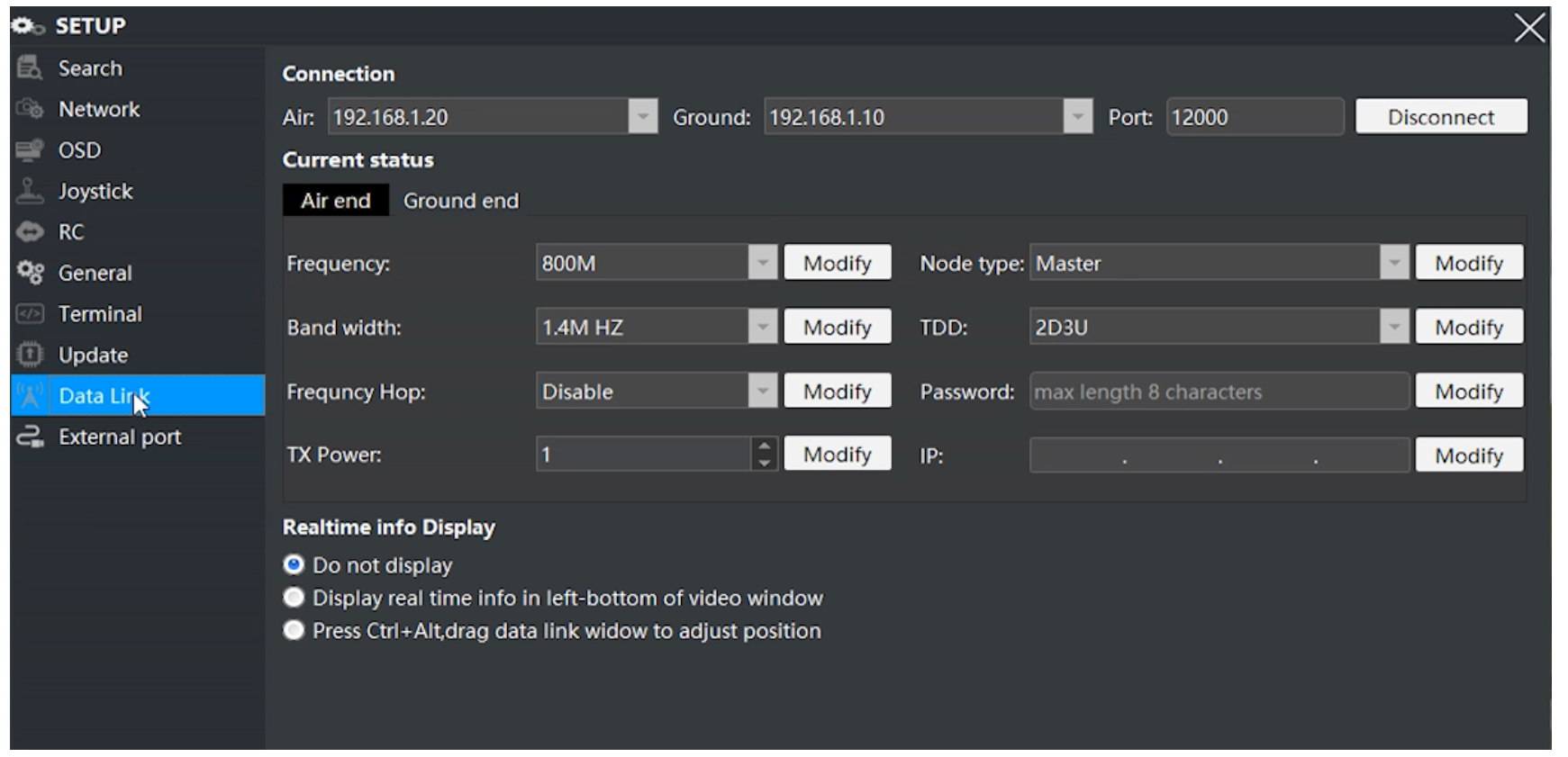

3.9. Data Link

Configuration of the image transmission link.

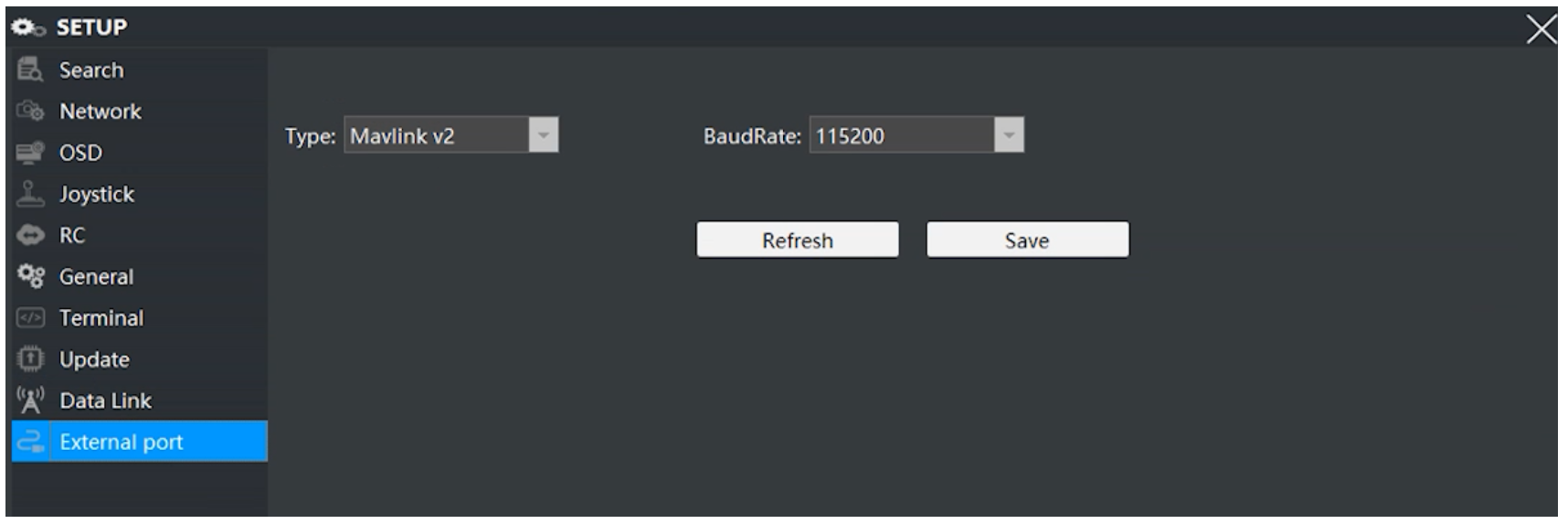

3.10. External port

Users can choose to connect to the flight controller or GPS data based on their needs. Once selected, the OSD interface will display the latitude, longitude, and time data from the corresponding module.
