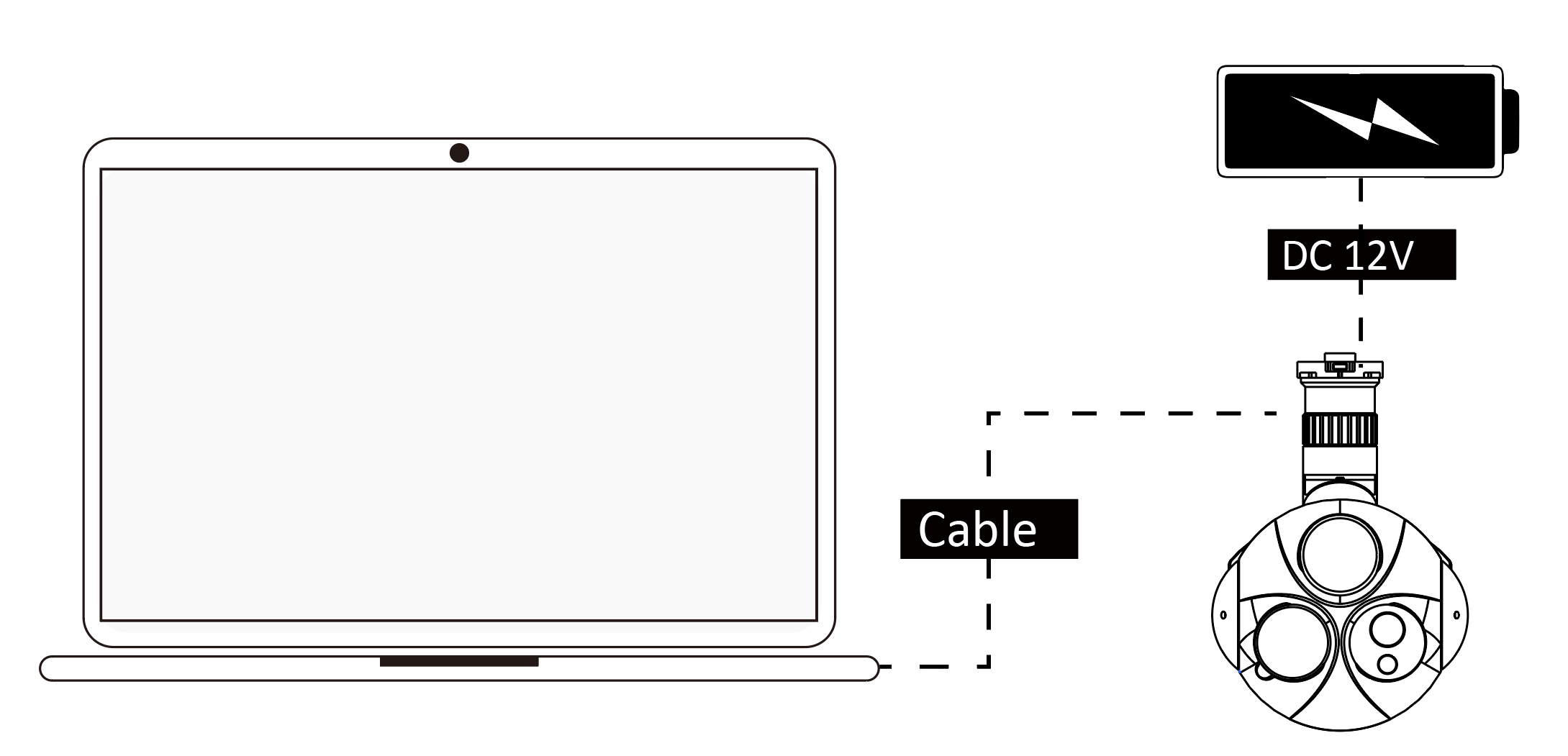

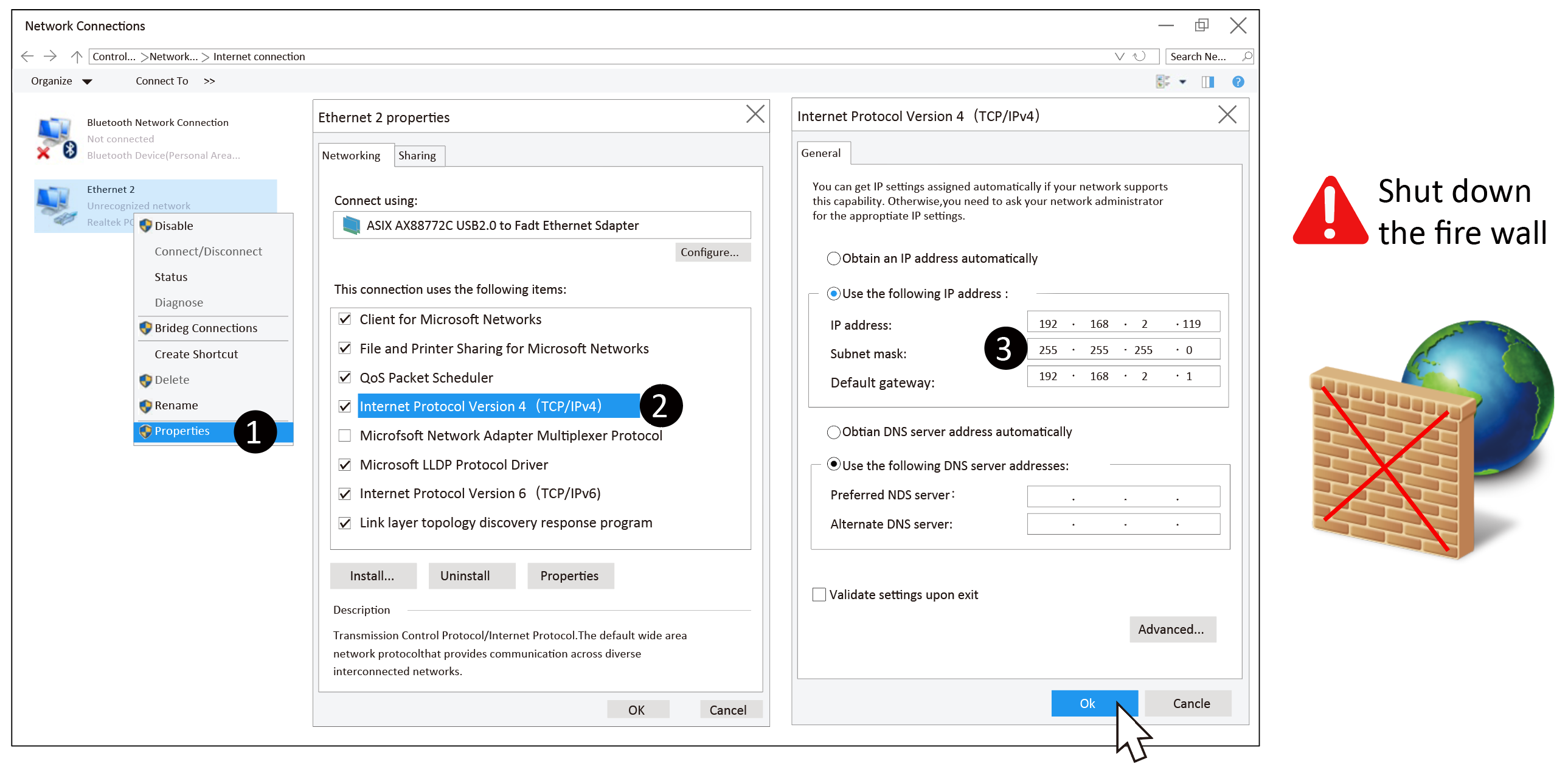

  • 1.2. Connect & set PC IP
  1. Gimbal Camera User Manual
  2. YDlink Control software

1.Download & Connect

PreviousYDlink Control softwareNext2. Control and configuration

Last updated 2 months ago

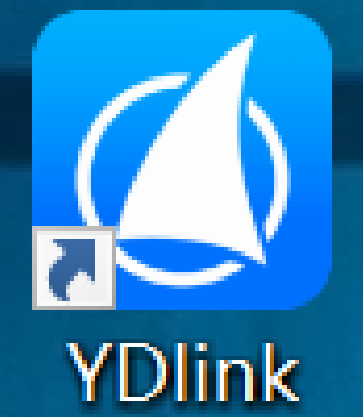

1.1. Download and install YDlink.

1.1.1. Download link：

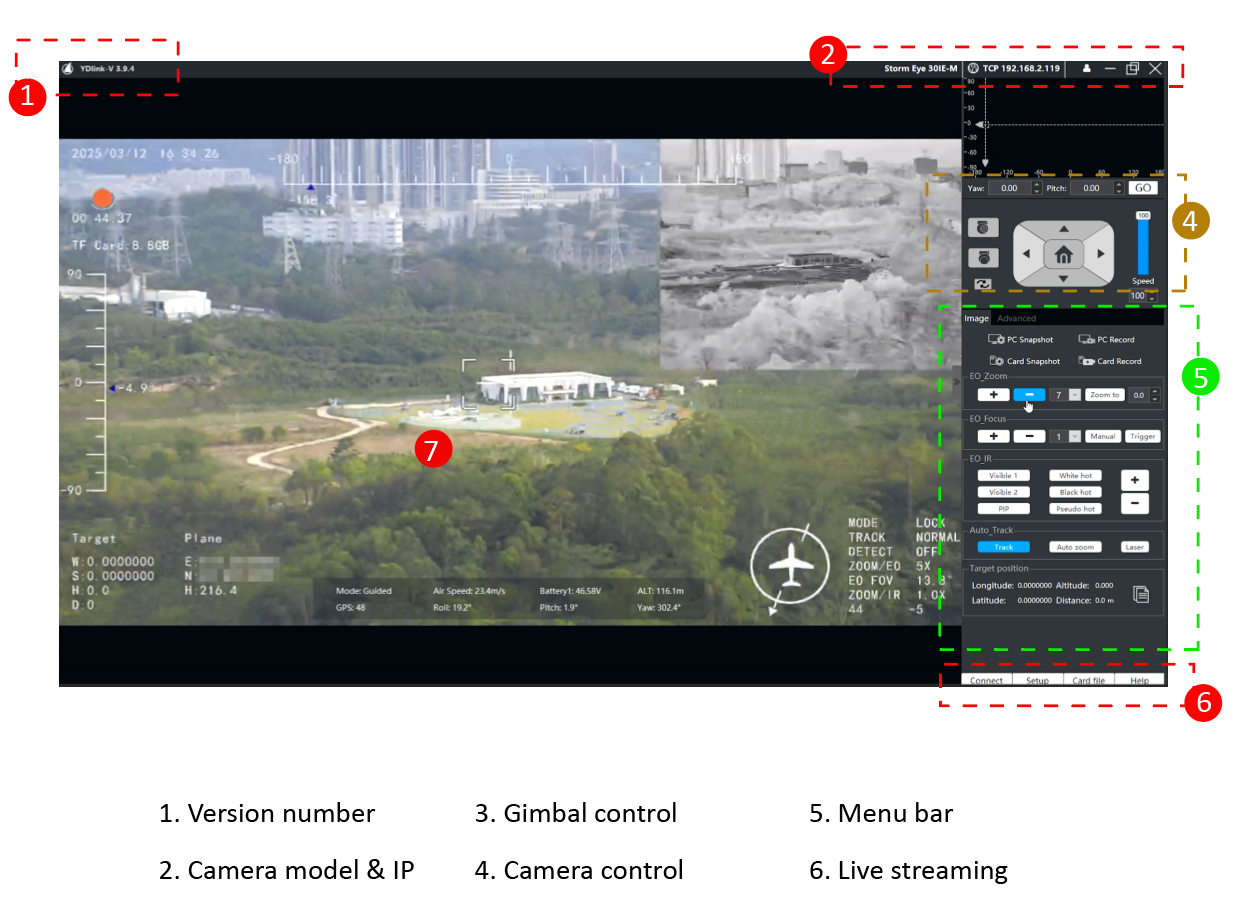

1.1.2 Interface after installation

1.2. Connect & set PC IP

1.2.1. Power on the gimbal by DC12V(3S). and Connect it to PC by RJ45 cable

1.2.2. Configure PC LAN IP address to the same IP segment as gimbal camera

(Note:The last number of PC ip address should be different with the last number of camera IP address)

Eg:

  • Default camera IP address is: 192 . 168 . 2 . 119

  • PC IP address: 192 . 168 . 2 . 3 (only the last number should be different than 119.)

  • Subnet mask: 255 . 255 . 255 . 0

  • Default gateway: 192 . 168 . 2 . 1

1.2.3. Run YDlink, Click “Connect” menu button

Enable video stream

  • Step 1. Input the Network video IP address: rtsp://192.168.2.119/554

  • Step 2. Click “Open Video” button to connect camera video.

Control the gimbal by TCP

  • Step 1. Enter the IP address 192.168.2.119 and port 2000.

  • Step 2. Click the “Connect” botton to enable gimbal control.

https://www.yangdaonline.com/ydlink-gimbal-control-software/
