Specification

MTOW

13.5kg

Weight w/o battery and payload

6.58kg

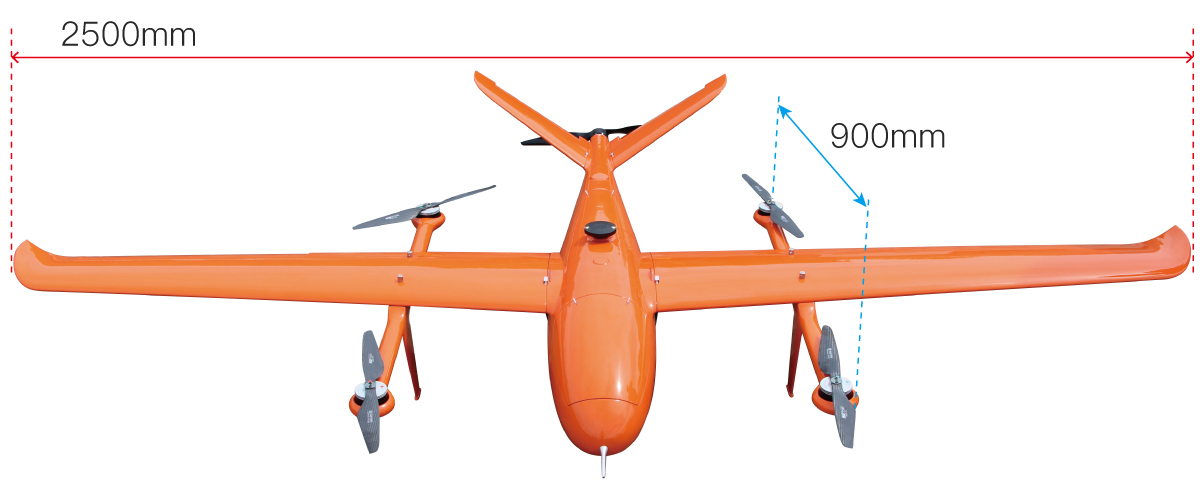

Wingspan

2,500 mm

Length

1,260 mm

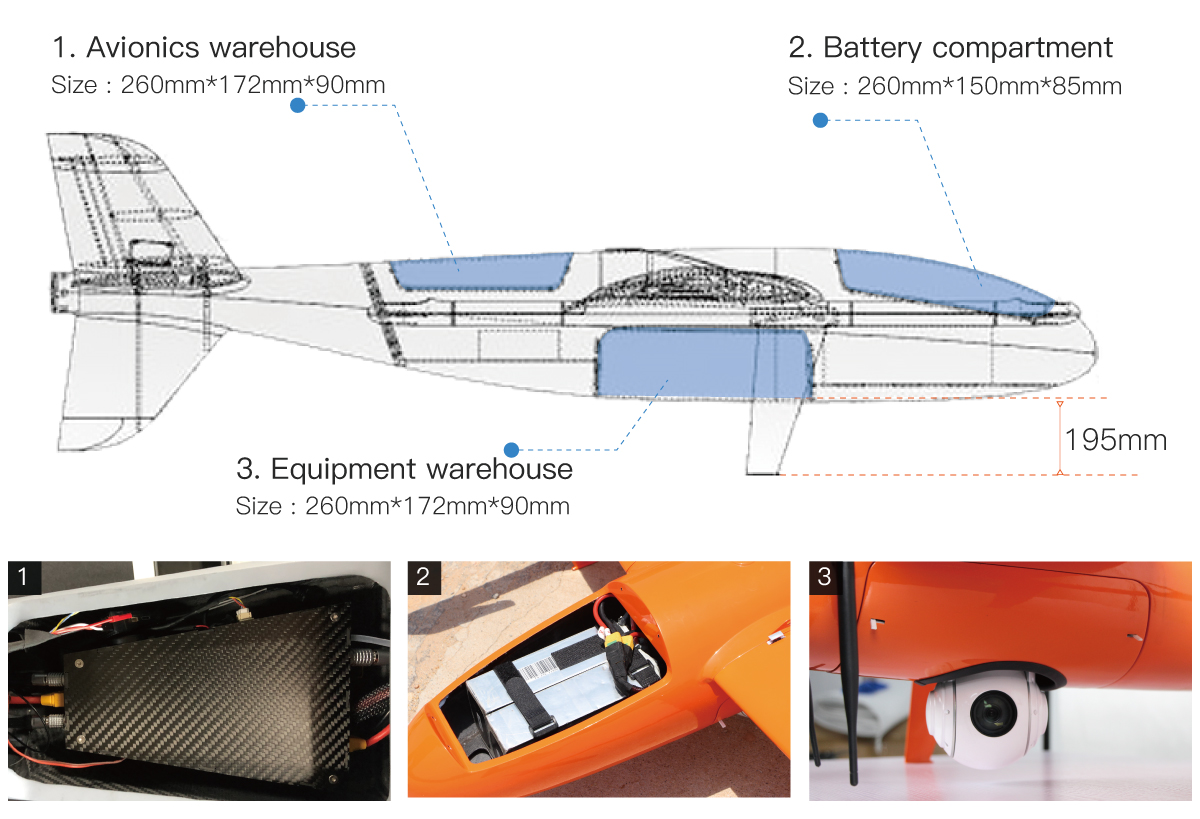

Height

195 mm

Frame weight

3.2kg

Max payload (battery included)

6.92kg

Battery weight (Tattu 6S 25000mAh)

4.72kg

Suggested payload weight

1.2kg

Endurance (12.5kg take-off weight)

3 hours 20 minutes

Cruise speed

68.4-108km/h

Max speed

150km/h

Stall speed

55.8km/h (57.6km/h @ Roll 25° / Pitch 15°)

Minimum Circling Radius

120m @ 68.4km/h ( Roll 18° )

Anti-wind capability

43.2km/h

Operating Altitude(Max.)

4,500m ASL

Operating Temperature

-20℃~45℃
