Setting

1. Network segment setting

Make the network segment of your PC or laptop to 147.

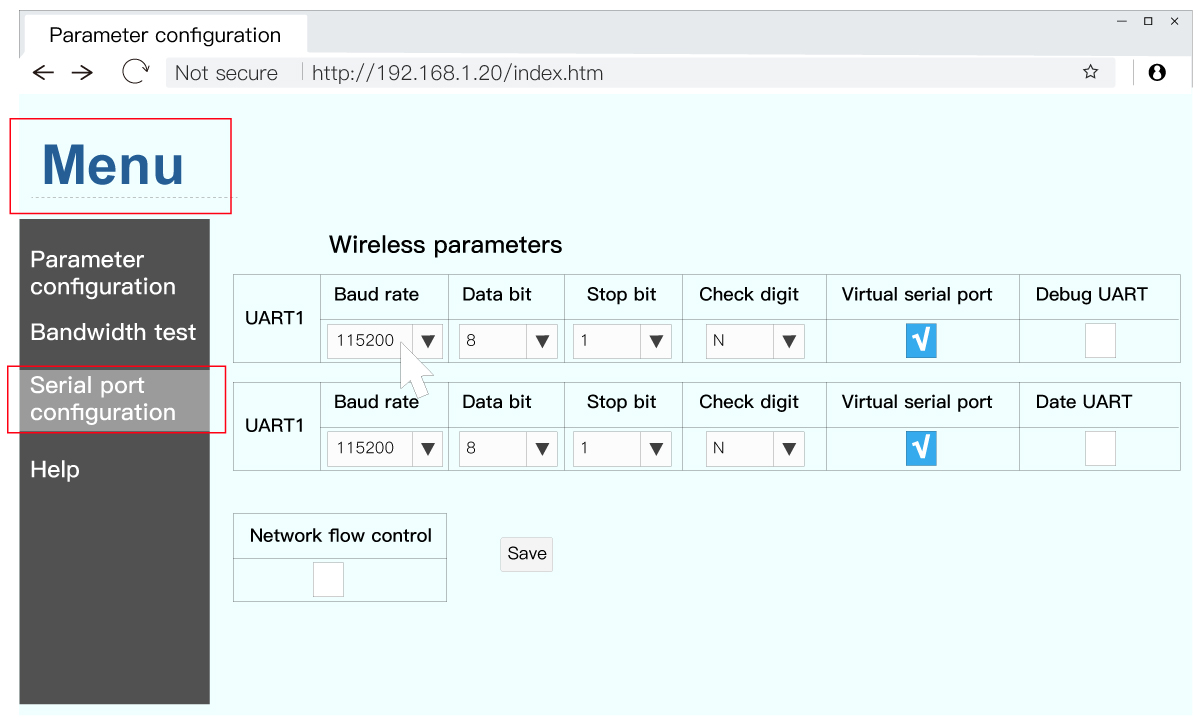

2. Baud rate setting

  • Make sure the baud rate of Videopass-N30 (both air and ground unit) is the same as autopilot.
  • How to do it: take the air unit, for example, input 192.168.147.10 in the browser and change the baud rate accordingly.
  • Do the same thing on the ground unit: input 192.168.147.20 in the browser.

3. Image Transmission Control System Toolbar

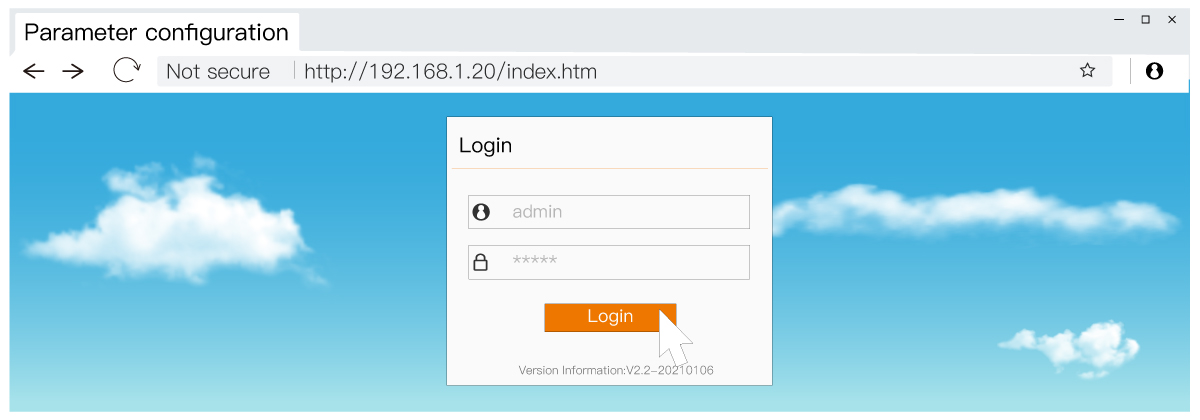

3.1 After checking the wiring and installation of the equipment, open the browser, enter the corresponding IP address (”193.168.147.10”), and enter the N30 setting interface
  • Username required : admin
  • Requires a password : admin
  • Click to log in
(After successfully logging into the WEB interface, the user can choose to modify the user name and password. Modify the function in "System Configuration")
3.2 After successful login, enter the configuration item (as shown in the figure below)
