# 4.4. Use the TTL port to connect and control

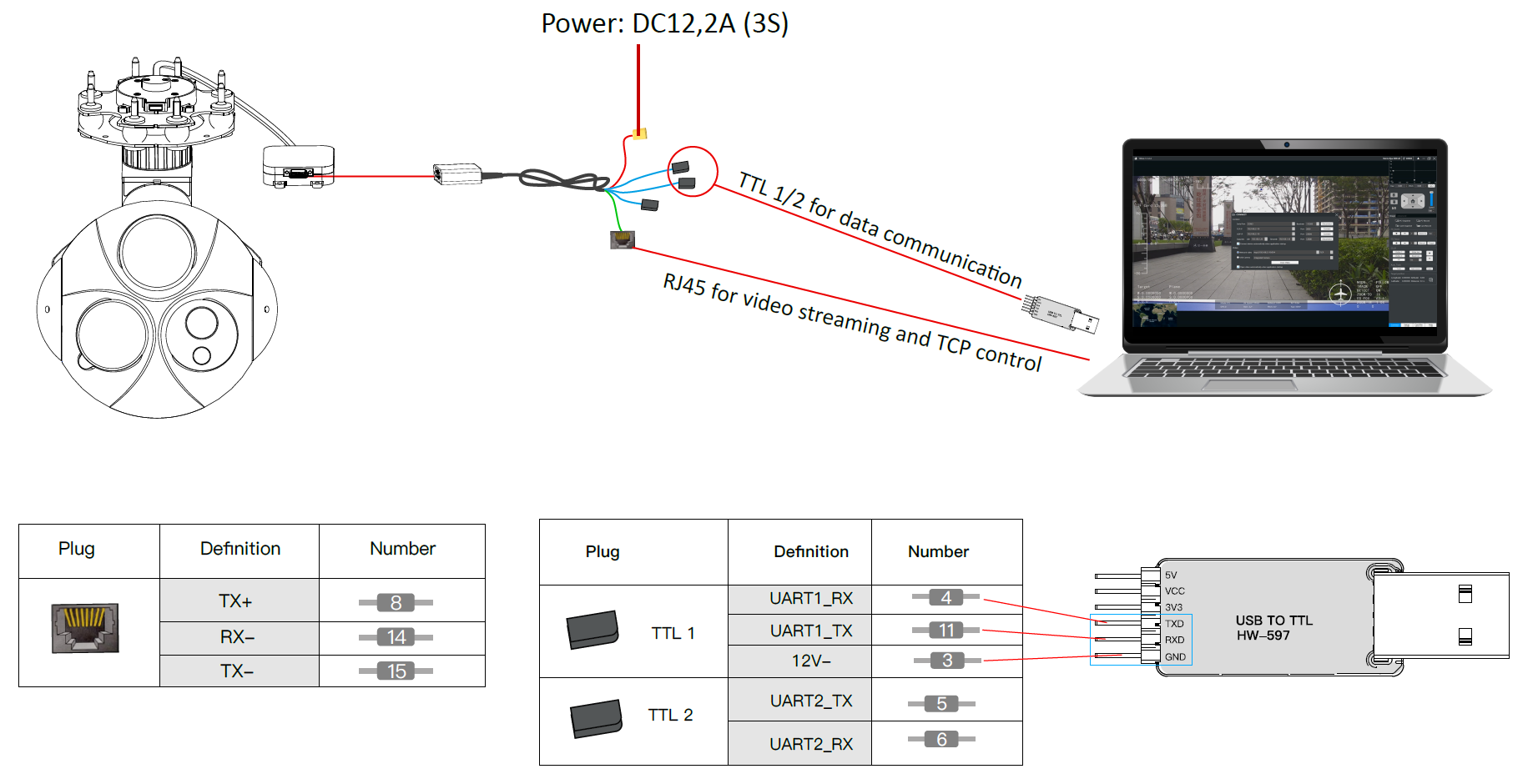

#### Scenario 1: Connect directly without using video & data Link equipment.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FSLpbfjWUmRTCtRE7kzO1%2Fimage.png?alt=media&#x26;token=00a511f7-bdf0-4d4a-b8fa-36237ef558f5" alt=""><figcaption></figcaption></figure>

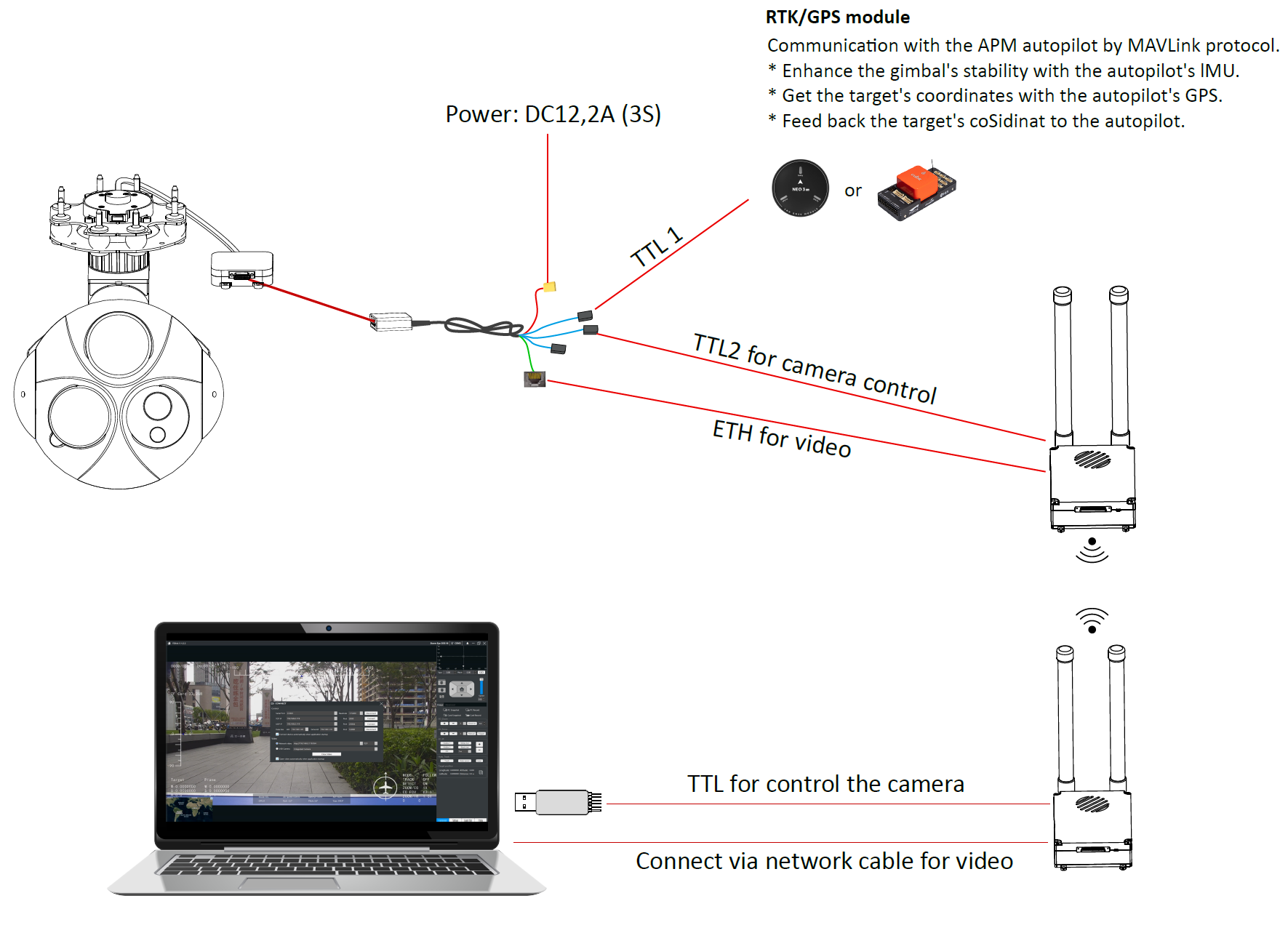

#### Scenario 2: Connect via devices such as video & data Link, and use the TTL connection method for control.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2FO7KJqNX9zUVCqIa7PoHI%2Fimage.png?alt=media&#x26;token=13671afb-e971-48e5-b2bc-a90900711b72" alt=""><figcaption></figcaption></figure>

#### After the connection is completed, perform image connection and control on YDlink.&#xD; Step 1. Chose the COM port and Baudrate 115200.&#xD; Step 2. Click the “Connect” botton to enable gimbal control.

<figure><img src="https://1851866520-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIWx9bMxy88NRLPUcOemU%2Fuploads%2Frsk7PiOIeDkvXYYG8Ntm%2Fimage.png?alt=media&#x26;token=f4207a04-9738-47d8-a1fa-ec9fcfa1190c" alt=""><figcaption></figcaption></figure>
